1736111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

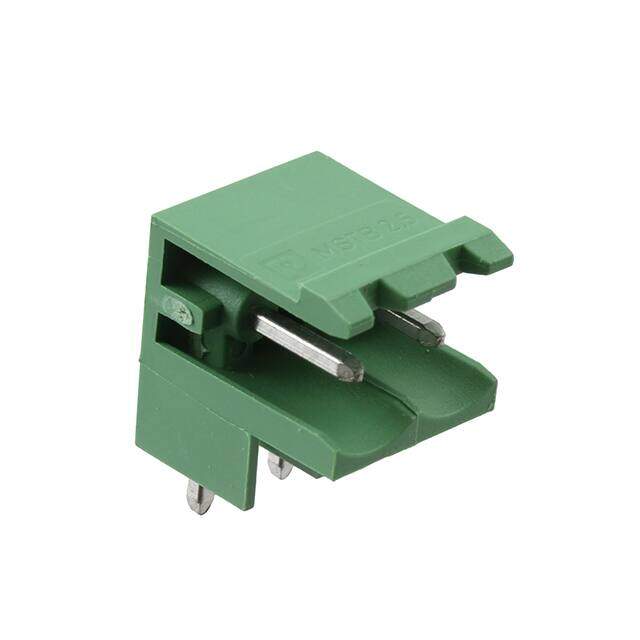

Pluggable Terminal Blocks 2 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.083236
≥1 USD $1.083236
≥10 USD $1.021925
≥100 USD $0.964075
≥500 USD $0.909508
≥1000 USD $0.858027
Inventory: 2500
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 10mm
Technical
Fastening Method PLUG IN
Header Orientation 90°, Right Angle
Safety Approval CSA; UL
Number of Ways 2
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.490 12.44mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 2
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBW
Published 2010
Packaging Bulk
Physical
Weight 9.00018kg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
