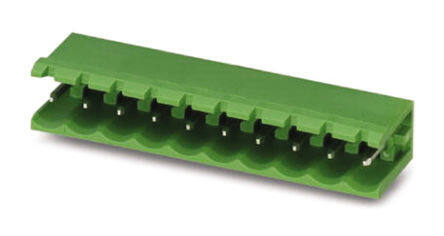

1736030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.16
Unit Price: USD $5.157468
≥1 USD $5.157468
≥10 USD $4.865533
≥100 USD $4.590126
≥500 USD $4.330306
≥1000 USD $4.085199
Inventory: 3722
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.50003kg
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBW
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 10
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 250V
Additional Feature PA; 94V-2
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.490 12.44mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 10
Safety Approval CSA; UL
Header Orientation 90°, Right Angle
Fastening Method PLUG IN
Dimensions
Length 50mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
