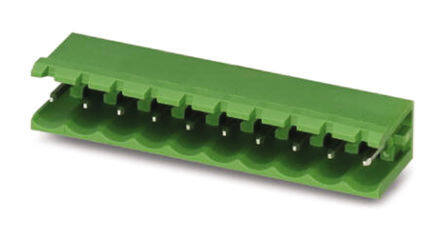

1736014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.74
Unit Price: USD $5.74062
≥1 USD $5.74062
≥10 USD $5.415679
≥100 USD $5.109126
≥500 USD $4.819934
≥1000 USD $4.54711
Inventory: 1253
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 12
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.490 12.44mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 12
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBW
Published 2011
Packaging Bulk
Physical
Weight 5.540007g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
