1735879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

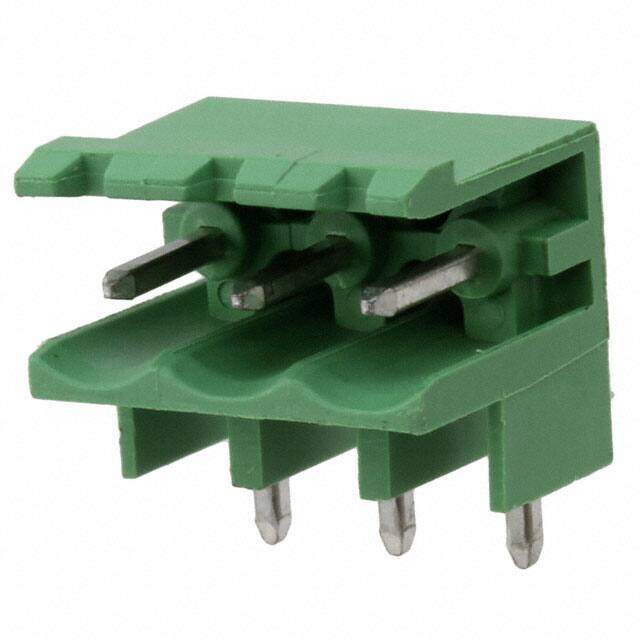

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.3728
≥1 USD $1.3728
≥10 USD $1.33936
≥100 USD $1.25136
≥500 USD $1.151216
≥1000 USD $1.129709
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 152.999995g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBW
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.490 12.44mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Fastening Method CONNECTOR
Dimensions
Height 15.24mm
Length 15.24mm
Width 15.95mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
