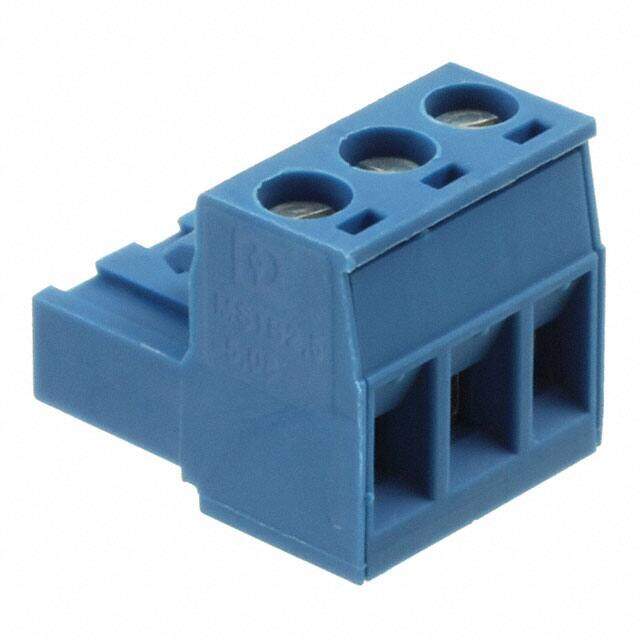

1734692
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.244
≥1 USD $2.244
≥10 USD $2.1868
≥100 USD $2.04336
≥500 USD $1.879856
≥1000 USD $1.844691
Inventory: 985
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 3
Color Blue
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 250V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Compliance
RoHS Status RoHS Compliant
