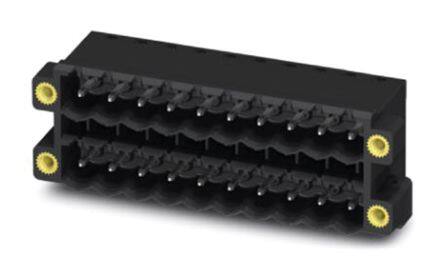

1734520
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $18.49
Unit Price: USD $18.487004
≥1 USD $18.487004
≥10 USD $17.440572
≥100 USD $16.453368
≥500 USD $15.522046
≥1000 USD $14.64344
Inventory: 4648
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 10
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 400V
Number of Decks 2
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.791 20.09mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature LCP, UL 94V0
Voltage - Rated 250V
Number of Rows 2
Color Black
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON CCDN
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
