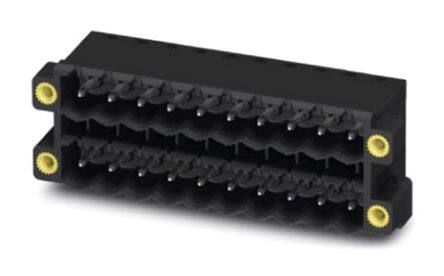

1734517
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Shrouded Header HDR 18 POS 5mm Solder RA Thru-Hole
PDF
/
Inventory: 1153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series COMBICON CCDN
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 18
Color Black
Number of Rows 2
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.791 20.09mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 2
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Voltage - IEC 400V
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 9
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
