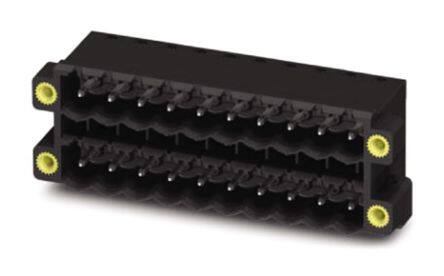

1734449
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.73975
≥1 USD $10.73975
≥10 USD $8.8122
≥100 USD $8.5367
≥500 USD $8.2612
≥1000 USD $7.9857
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 3.175147kg
Technical
Packaging Bulk
Published 2011
Series COMBICON CCDN
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Number of Rows 2
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.791 20.09mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
