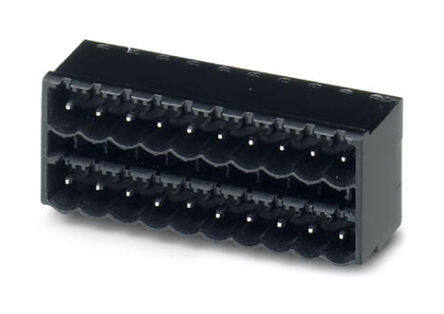

1734423
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 17 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $47.09
Unit Price: USD $47.087159
≥1 USD $47.087159
≥200 USD $18.788912
≥500 USD $18.161346
≥1000 USD $17.850188
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON CCDN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 34
Color Black
Number of Rows 2
Voltage - Rated 250V
Additional Feature LCP, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.791 20.09mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 2
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Voltage - IEC 400V
Number of Ways 17
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 17
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
