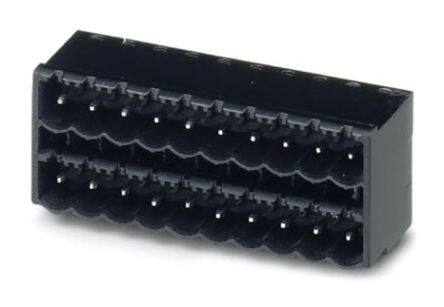

1734339
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Shrouded Header HDR 16 POS 5mm Solder RA Thru-Hole
PDF
/
Inventory: 4923
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 8
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 8
Voltage - IEC 400V
Number of Decks 2
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.791 20.09mm
Pitch 0.197 5.00mm
Additional Feature LCP, UL 94V0
Voltage - Rated 250V
Number of Rows 2
Color Black
Number of Positions 16
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON CCDN
Published 2011
Packaging Bulk
Physical
Weight 749.788188g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
