1733107
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

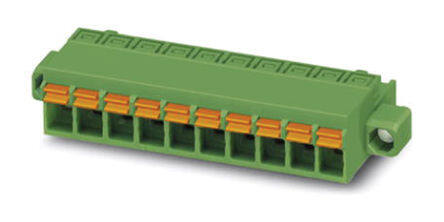

Pluggable Terminal Blocks 17 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $44.35
Unit Price: USD $44.345823
≥1 USD $44.345823
≥200 USD $17.693953
≥500 USD $17.103148
≥1000 USD $16.810372
Inventory: 1237
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material PBT, Tin
Housing Material Polybutylene Terephthalate (PBT)
Weight 240.000004g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKCN
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional Feature PBT, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.429 10.90mm
Current Rating 12A
Termination Style Screwless - Push-In Spring
Number of Levels 1
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 630V
Number of Ways 17
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 17
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
