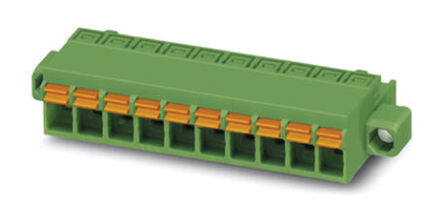

1733084
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FKCN RoHS Compliant 2011 Mating Flange Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 24AWG 180° 12A
PDF
/
Buying Options
Total Price: USD $39.16
Unit Price: USD $39.15593
≥1 USD $39.15593
≥200 USD $15.62351
≥500 USD $15.102289
≥1000 USD $14.843647
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Number of Positions Per Level 15
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 15
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 1
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.429 10.90mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON FKCN
Published 2011
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Material PBT, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 8 Weeks
