1733000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

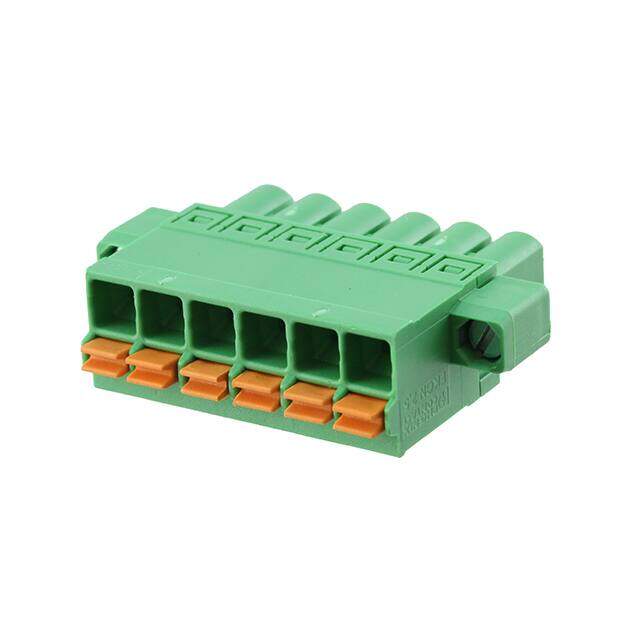

Pluggable Terminal Blocks 6 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $6.54
Unit Price: USD $6.5384
≥1 USD $6.5384
≥10 USD $6.35624
≥100 USD $5.94
≥500 USD $5.4648
≥1000 USD $5.36536
Inventory: 62
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 6
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 12A
Number of Levels 1
Voltage 250V
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.429 10.90mm
Pitch 0.197 5.00mm
Voltage - Rated 320V
Gender Female
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON FKCN
Published 2010
Packaging Bulk
Physical
Weight 1.200205kg
Housing Material Polybutylene Terephthalate (PBT)
Material PBT, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
