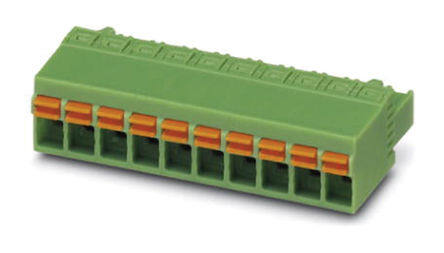

1732852
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FKCN RoHS Compliant 2011 Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 16AWG 180° 12A
PDF
/
Buying Options
Total Price: USD $41.57
Unit Price: USD $41.566414
≥1 USD $41.566414
≥200 USD $16.585866
≥500 USD $16.031822
≥1000 USD $15.757426
Inventory: 1137
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 14
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Number of Levels 1
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.429 10.90mm
Pitch 0.197 5.00mm
Voltage - Rated 320V
Gender Female
Color Green
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCN
Published 2011
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Material PBT, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 8 Weeks
