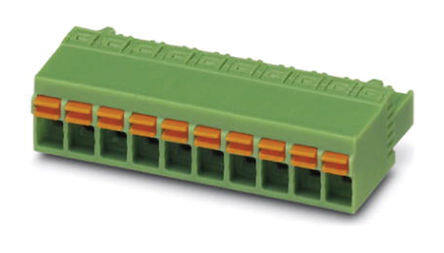

1732849 image
Favorite
1732849 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON FKCN RoHS Compliant 2011 Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 16AWG 180° 12A
PDF
/
Inventory: 1154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 13
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Number of Levels 1
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.429 10.90mm
Pitch 0.197 5.00mm
Voltage - Rated 320V
Gender Female
Color Green
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCN
Published 2011
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT)
Material PBT, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 8 Weeks
