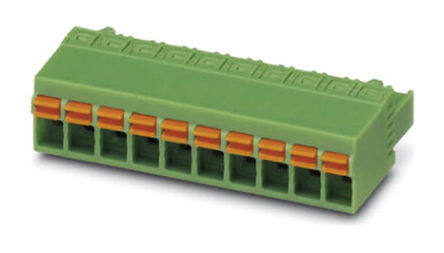

1732836
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FKCN RoHS Compliant 2011 Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 16AWG 180° 12A
PDF
/
Inventory: 1119
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material PBT, Tin
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCN
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 320V
Pitch 0.197 5.00mm
Insulation Height 0.429 10.90mm
Current Rating 12A
Termination Style Screwless - Push-In Spring
Number of Levels 1
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
