1731565
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

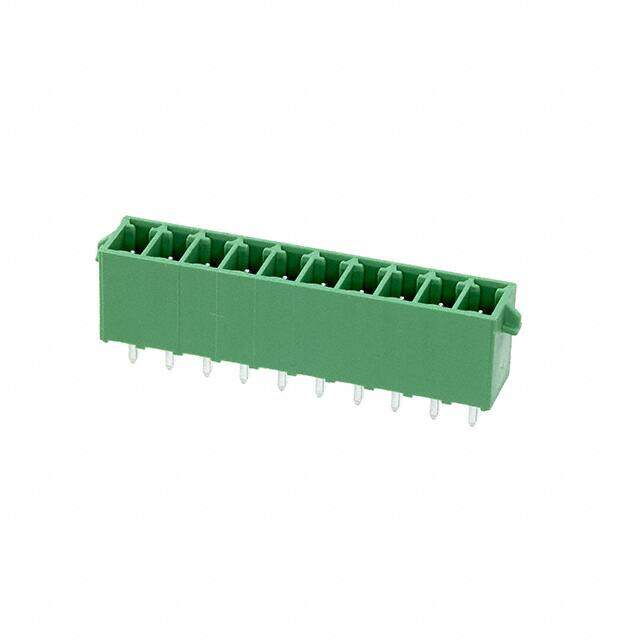

Pluggable Terminal Blocks 10 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.92
Unit Price: USD $2.9216
≥1 USD $2.9216
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 10
Header Orientation Vertical
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MCV
Published 2011
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
