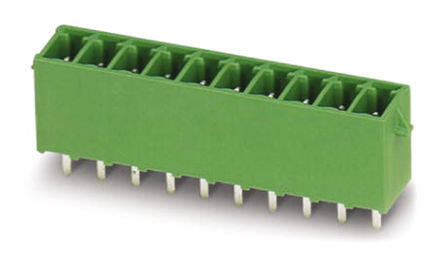

1731510
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7336
≥1 USD $1.7336
≥10 USD $1.68608
≥100 USD $1.57608
≥500 USD $1.449976
≥1000 USD $1.422854
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 5
Header Orientation Vertical
Number of Positions Per Level 5
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
