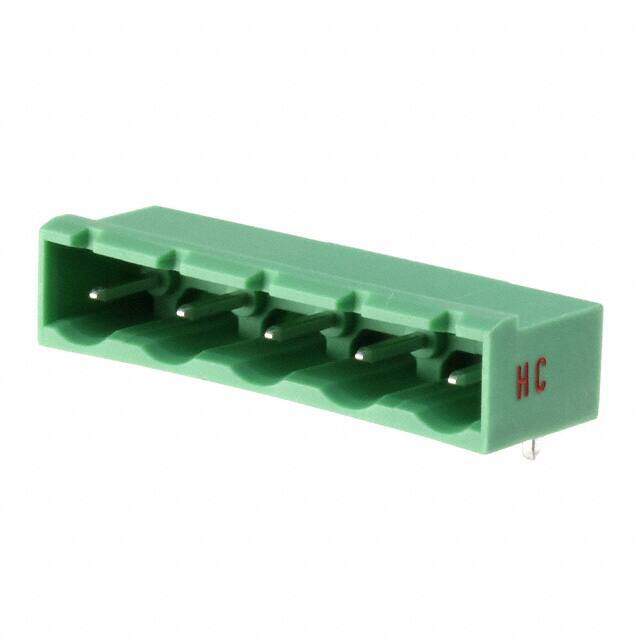

1728882
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block; Male Pins; (4 Side); 5 Pos; 0.300" (7.62mm) pitch; 18.5A; 300V
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.5048
≥1 USD $1.5048
Inventory: 133
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 38.1mm
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 5
Voltage - IEC 1kV
Number of Decks 1
Current 18.5A
Number of Levels 1
Max Current Rating 16A
ELV Compliant
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.300 7.62mm
Additional Feature PBT, UL 94V0
Voltage - Rated 500V
Gender Male
Number of Rows 1
Color Green
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GMSTBA
Published 2010
Packaging Bulk
Physical
Weight 28.349523g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
