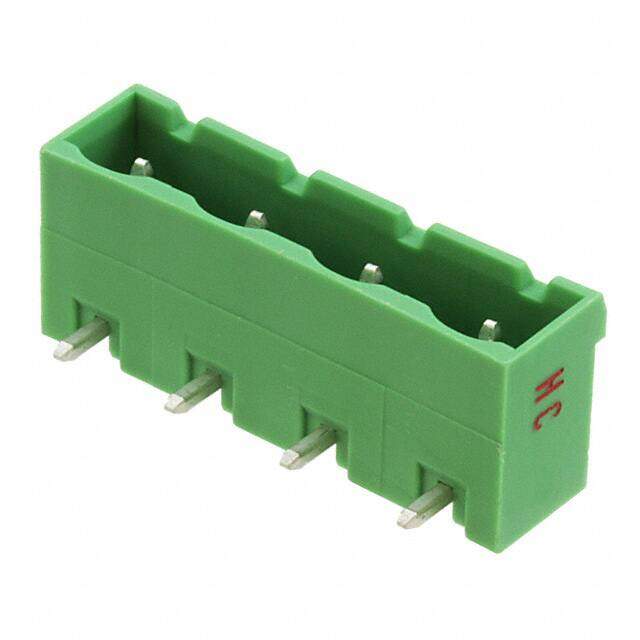

1728879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.13994
≥1 USD $2.13994
≥10 USD $2.018818
≥100 USD $1.904549
≥500 USD $1.796739
≥1000 USD $1.695039
Inventory: 2339
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTBA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 500V
Pitch 0.300 7.62mm
Insulation Height 0.339 8.61mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 18.5A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 4
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 16A
Number of Positions Per Level 4
Dimensions
Height 12.1mm
Length 12mm
Width 30.48mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
