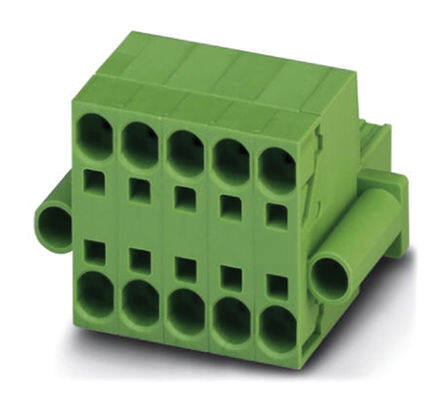

1728293
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON TSPC RoHS Compliant 2011 Mating Flange Terminal Block Plug, Female Sockets UL94V-0 24AWG 180° 31A
PDF
/
Buying Options
Total Price: USD $106.28
Unit Price: USD $106.284507
≥1 USD $106.284507
≥200 USD $42.407983
≥500 USD $40.991364
≥1000 USD $40.291588
Inventory: 1119
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 10 mm2
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 11
Positions Per Level 11 (Mate), 22 (Input)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 31A
Number of Levels 1 (Mate), 2 (Input)
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 41A
Insulation Height 1.380 35.05mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Gender Female
Number of Rows 2
Color Green
Number of Positions 11
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON TSPC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
