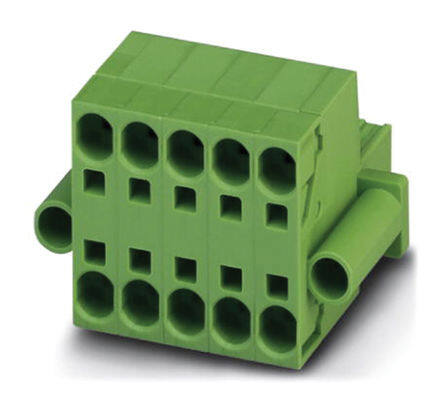

1728219 image
Favorite
1728219 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $8.08
Unit Price: USD $8.0784
≥1 USD $8.0784
Inventory: 125
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method SPRING LOADED
Wire Cross Section 10 mm2
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Positions Per Level 3 (Mate), 6 (Input)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 31A
Number of Levels 1 (Mate), 2 (Input)
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 41A
Insulation Height 1.380 35.05mm
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Gender Female
Number of Rows 2
Color Green
Number of Positions 3
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON TSPC
Published 2014
Packaging Bulk

Physical

Weight 300.000012g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 12 Weeks
