1726693
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

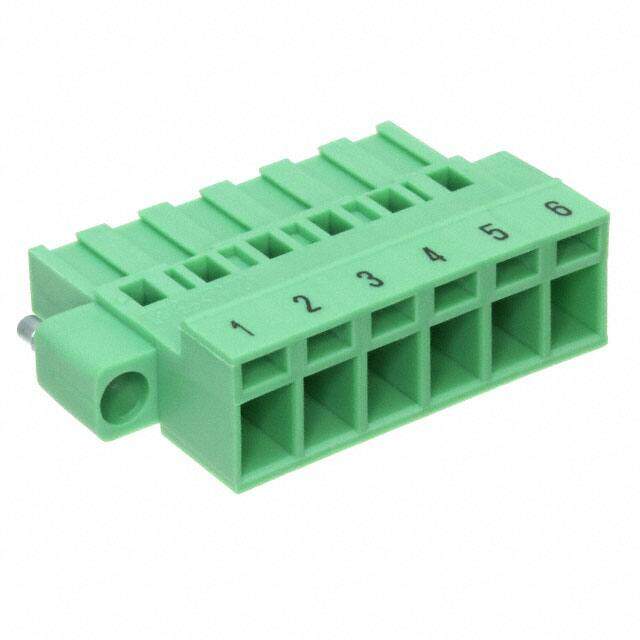

Printed-circuit board connector MSTBC 2,5/ 6-STZF-5,08 BD:1-6 1726693 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7256
≥1 USD $4.7256
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Weight 28.349523g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBC
Feature Mating Flange, Positions Stamped
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Crimp
Type Plug Housing for Female Sockets
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.413 10.49mm
Current Rating 12A
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-20 AWG
Voltage - IEC 630V
Number of Ways 6
Safety Approval CB; CCA; CSA; CUL; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Current - IEC 12A
Wire Cross Section 2.5 mm2
Compliance
RoHS Status RoHS Compliant
