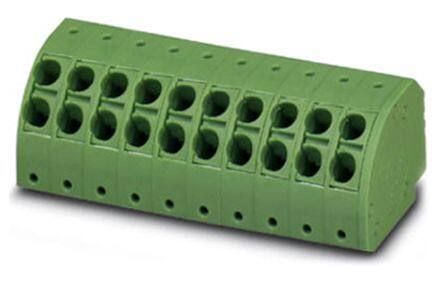

1725640
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 13 Pos 5mm pitch Plug 24-14AWG Spring
PDF
/
Inventory: 1229
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 45°
Safety Approval UL
Number of Ways 13
Positions Per Level 13 (Mate), 26 (Input)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 14 AWG
Current 13.5A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 13.5A
Insulation Height 0.630 16.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 320V
Number of Rows 2
Color Green
Number of Positions 13
Type Plug for Unshrouded Header
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTDA
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
