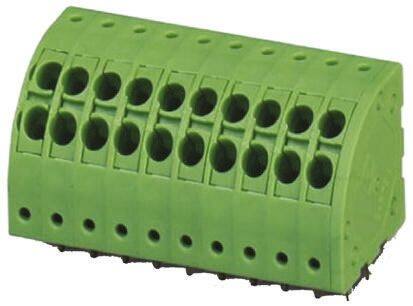

1725523
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-14AWG Spring
PDF
/
Inventory: 6001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug for Unshrouded Header
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 320V
Pitch 0.197 5.00mm
Insulation Height 0.630 16.00mm
Current Rating 13.5A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency UL
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 13.5A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-24 AWG
Voltage - IEC 630V
Positions Per Level 4 (Mate), 8 (Input)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 45°
Wire Gauge or Range - mm2 0.2-2.5mm2
Stripping Length 10mm
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Series COMBICON PTDA
Published 2010
Packaging Bulk
Physical
Weight 7.209992g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
