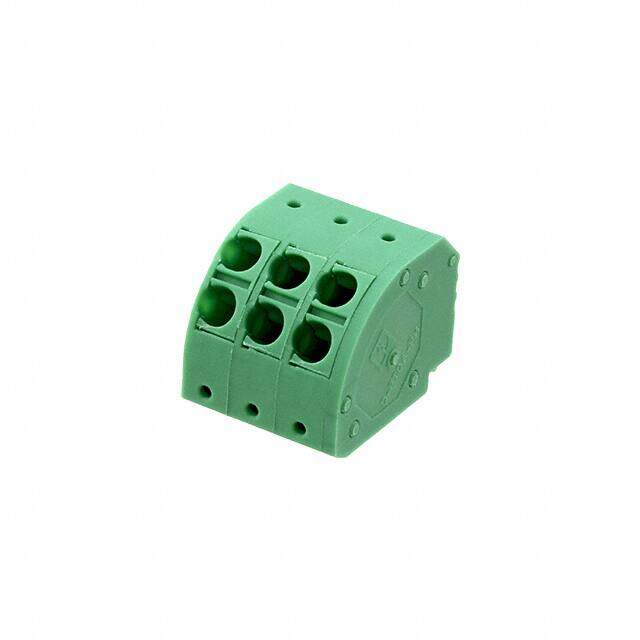

1725510
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-14AWG Spring
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.3552
≥1 USD $1.3552
≥10 USD $1.3024
≥100 USD $1.245904
≥500 USD $1.211848
≥1000 USD $1.13256
≥3000 USD $1.041955
Inventory: 356
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Stripping Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 45°
Safety Approval UL
Number of Ways 3
Positions Per Level 3 (Mate), 6 (Input)
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 24 AWG
Current 13.5A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Approval Agency UL
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 13.5A
Reach Compliance Code unknown
Insulation Height 0.630 16.00mm
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 3
Type Plug for Unshrouded Header
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTDA
Published 2010
Packaging Bulk
Physical
Weight 5.59699g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
