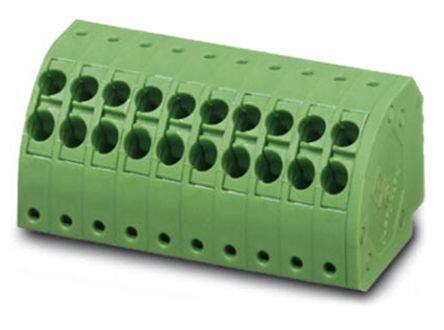

1725263
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Fixed Terminal Blocks 14 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Rows 2
Voltage - Rated 160V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.630 16.00mm
Current Rating 8A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 400V
Positions Per Level 14 (Mate), 28 (Input)
Number of Ways 14
Safety Approval UL
Plug Wire Entry 45°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Current - IEC 8A
Wire Cross Section 1.5 mm2
Fastening Method SPRING LOADED
Color Green
Number of Positions 14
Type Plug for Unshrouded Header
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTDA
Published 2011
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Weight 29.000003g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
