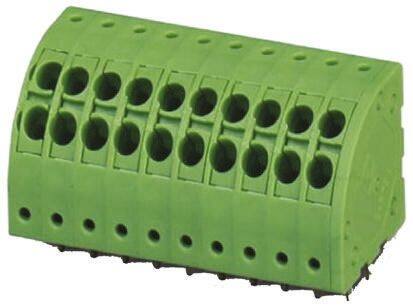

1725133
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 20mm
Length 15.4mm
Height 16mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 1.5 mm2
Stripping Length 10mm
Current - IEC 8A
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 45°
Safety Approval UL
Number of Ways 4
Positions Per Level 4 (Mate), 8 (Input)
Voltage - IEC 400V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Approval Agency UL
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 8A
Insulation Height 0.630 16.00mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 4
Type Plug for Unshrouded Header
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTDA
Published 2010
Packaging Bulk
Physical
Weight 29.000003g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
