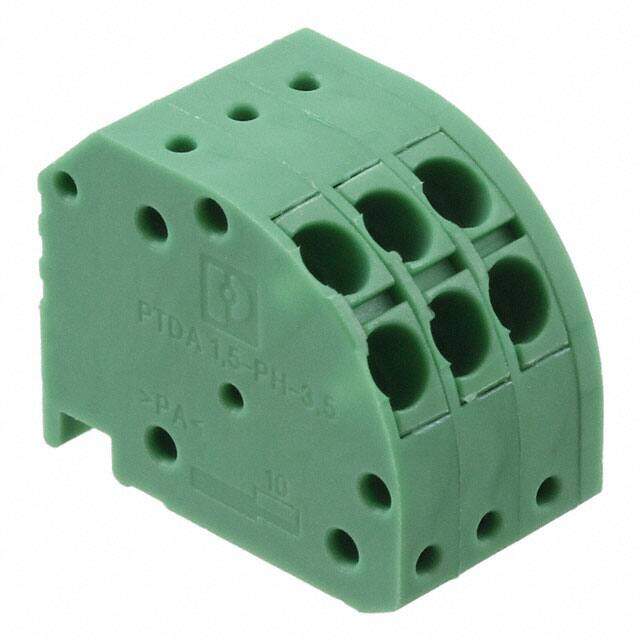

1725120
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
Inventory: 336
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 29.000003g
Technical
Packaging Bulk
Published 2010
Series COMBICON PTDA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug for Unshrouded Header
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Depth 20mm
Insulation Height 0.630 16.00mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency UL
Voltage 300V
Max Supply Voltage 300V
Max Current Rating 10A
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 400V
Positions Per Level 3 (Mate), 6 (Input)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 45°
Wire Gauge or Range - mm2 0.2-1.5mm2
Current - IEC 8A
Stripping Length 10mm
Fastening Method SPRING LOADED
Dimensions
Height 16mm
Length 11.9mm
Width 20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
