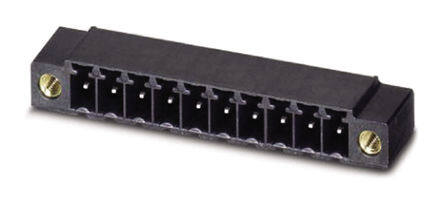

1722176
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Wire to Board HDR 4 POS 3.81mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
Inventory: 169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2012
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.272 6.91mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
