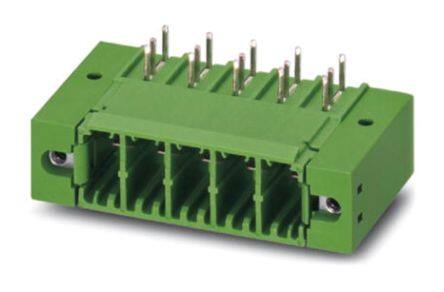

1721083
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.62mm pitch Through Hole Header
PDF
/
Inventory: 3041
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 630V
Pitch 0.300 7.62mm
Insulation Height 0.533 13.54mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.165 4.19mm
Number of Levels 1
Current 41A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle, Under Board
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
