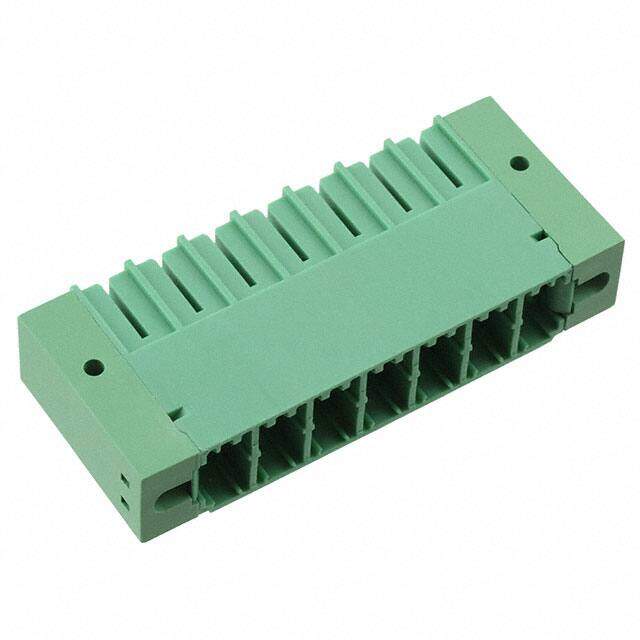

1721067
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $11.01
Unit Price: USD $11.0088
≥1 USD $11.0088
≥10 USD $10.71136
≥100 USD $10.01088
≥500 USD $9.21008
≥1000 USD $8.509248
≥3000 USD $8.108848
Inventory: 273
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle, Under Board
Safety Approval UL
Number of Ways 7
Voltage - IEC 1kV
Number of Decks 1
Contact Mating Finish Tin
Current 41A
Number of Levels 1
Contact Tail Length 0.165 4.19mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 0.533 13.54mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V0
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
