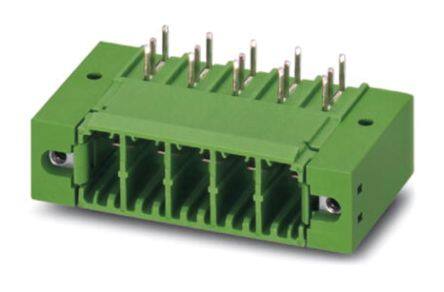

1721054
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $9.45
Unit Price: USD $9.451651
≥1 USD $9.451651
≥10 USD $8.916659
≥100 USD $8.411937
≥500 USD $7.93579
≥1000 USD $7.486596
Inventory: 9543
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 18.069986g
Technical
Packaging Bulk
Published 2010
Series COMBICON PC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PBT, UL 94V0
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 29.25mm
Insulation Height 0.533 13.54mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.165 4.19mm
Max Current Rating 41A
Number of Levels 1
Current 41A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle, Under Board
Dimensions
Length 60.02mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
