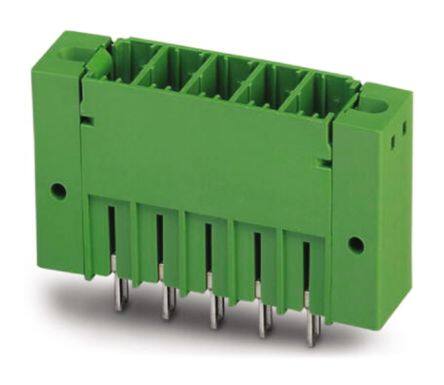

1720932 image
Favorite
1720932 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $7.83
Unit Price: USD $7.832
≥1 USD $7.832
≥10 USD $7.61816
≥100 USD $7.12008
≥500 USD $6.550456
≥1000 USD $6.052077
≥3000 USD $5.767291
Inventory: 80
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 52.07mm

Technical

Number of Positions Per Level 5
Header Orientation Vertical
Safety Approval UL
Number of Ways 5
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Current 41A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Insulation Height 1.152 29.25mm
Depth 13.21mm
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V0
Voltage - Rated 630V
Number of Rows 1
Color Green
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PCV
Published 2011
Packaging Bulk

Physical

Weight 1.200205kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
