RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

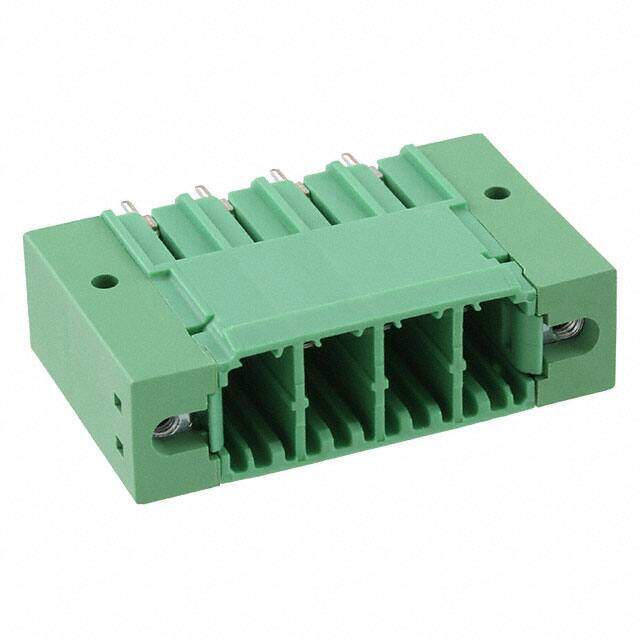

Description Pluggable Terminal Blocks 4 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.31
Unit Price: USD $6.3096
≥1 USD $6.3096
≥10 USD $6.13536
≥100 USD $5.73408
≥500 USD $5.275336
≥1000 USD $4.873968
≥3000 USD $4.644622
Inventory: 120
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 46.58mm
Length 13.54mm
Height 34.25mm

Technical

Number of Positions Per Level 4
Header Orientation Vertical
Safety Approval UL
Number of Ways 4
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Current 41A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Insulation Height 1.152 29.25mm
Pitch 0.300 7.62mm
Voltage - Rated 630V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PCV
Published 2011
Packaging Bulk

Physical

Weight 907.18474g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
