1720903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

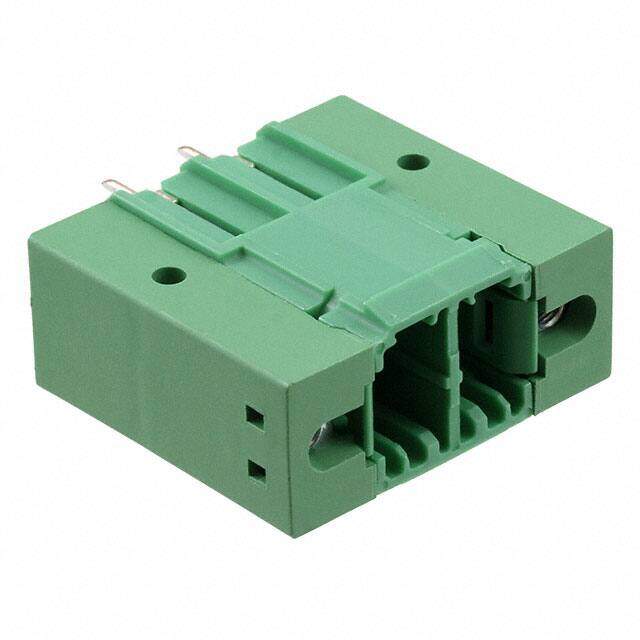

Phoenix Contact PCV 5/ 2-GF-7.62, 7.62mm Pitch, 2 Way PCB Terminal Block Header
PDF
/
Buying Options
Total Price: USD $2.23
Unit Price: USD $2.2264
≥1 USD $2.2264
Inventory: 153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2011
Series COMBICON PCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 1.152 29.25mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Current 41A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 2
Dimensions
Height 31.34mm
Length 13.54mm
Width 34.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
