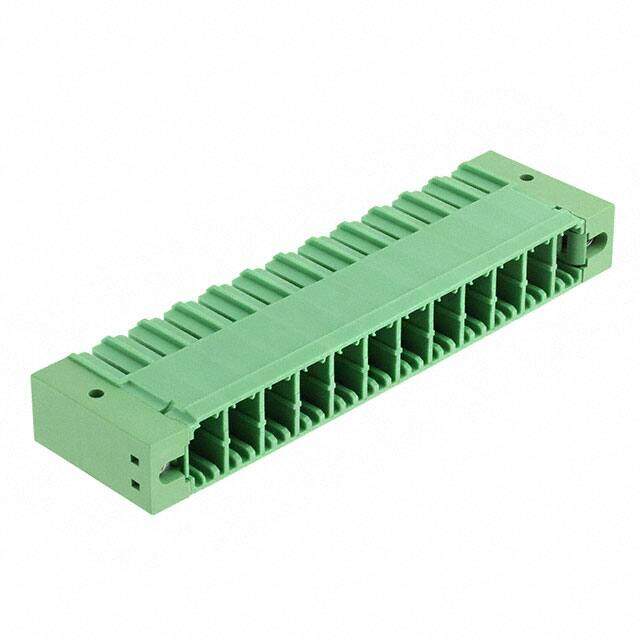

1720893
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Connector; PCB header; 41A; 630V; 12 positions; PC 5/12-GF-7 62
PDF
/
Buying Options
Total Price: USD $18.88
Unit Price: USD $18.876
≥1 USD $18.876
≥10 USD $18.36384
≥100 USD $17.16264
≥500 USD $15.789664
≥1000 USD $14.588253
≥3000 USD $13.9018
Inventory: 216
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 12
Voltage - IEC 1kV
Number of Decks 1
Contact Mating Finish Tin
Current 41A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 0.563 14.30mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V0
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
