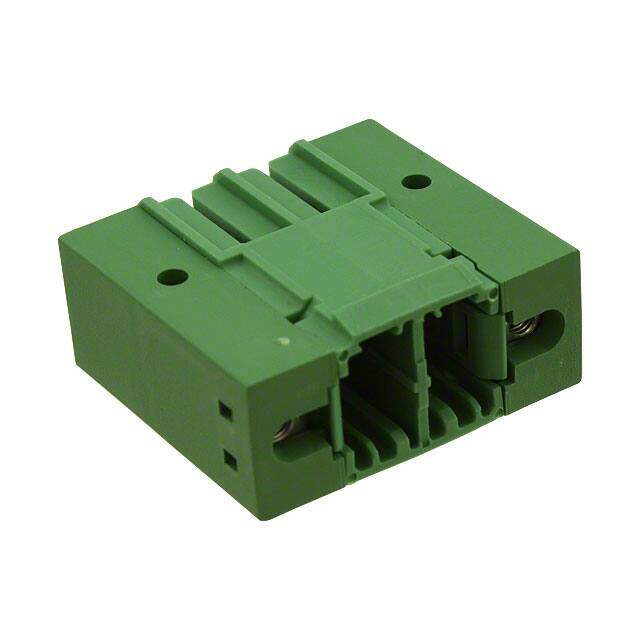

1720796
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.1328
≥1 USD $3.1328
≥10 USD $3.05096
≥100 USD $2.8512
≥500 USD $2.623104
≥1000 USD $2.42352
≥3000 USD $2.30949
Inventory: 317
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Dimensions
Width 29.25mm
Length 31.34mm
Height 29.25mm
Technical
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval CUL; EAC; UL
Number of Ways 2
Voltage - IEC 1kV
Number of Decks 1
Number of Poles 2
Current 41A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Insulation Height 0.563 14.30mm
Depth 14.29mm
Orientation Straight
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 630V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PC
Published 2012
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
