1720673
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

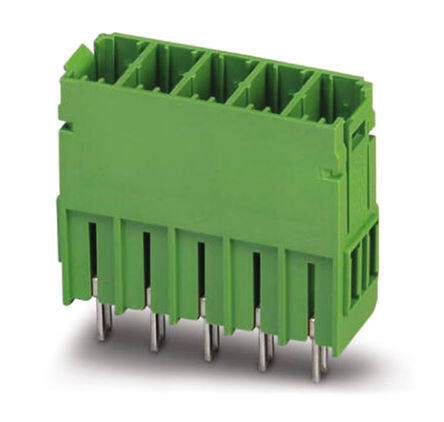

Pluggable Terminal Blocks 12 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $48.39
Unit Price: USD $48.389555
≥1 USD $48.389555
≥200 USD $19.30882
≥500 USD $18.662874
≥1000 USD $18.343839
Inventory: 9532
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PCV
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 1.152 29.25mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Current 41A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
