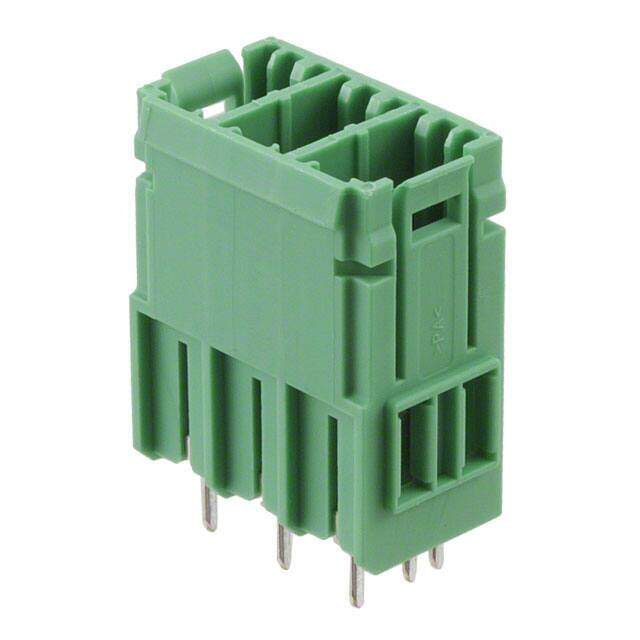

1720589
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.38
Unit Price: USD $4.3824
≥1 USD $4.3824
≥10 USD $4.26272
≥100 USD $3.98376
≥500 USD $3.665112
≥1000 USD $3.386205
≥3000 USD $3.226854
Inventory: 522
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 453.59237g
Technical
Packaging Bulk
Published 2011
Series COMBICON PCV
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature 94V-0, PA
Pitch 0.300 7.62mm
Insulation Height 1.152 29.25mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Current 41A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 3
Fastening Method CONNECTOR
Dimensions
Height 25.66mm
Length 13.54mm
Width 34.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
