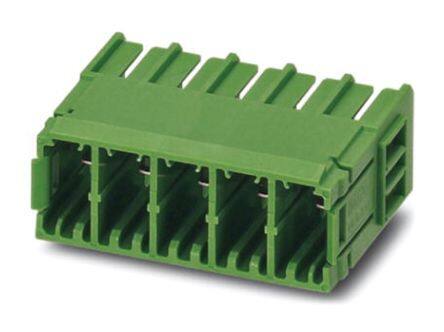

1720550
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 7.62mm pitch Through Hole Header
PDF
/
Inventory: 4908
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.563 14.30mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Current 41A
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 11
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 29.25mm
Length 19.29mm
Width 86.62mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
