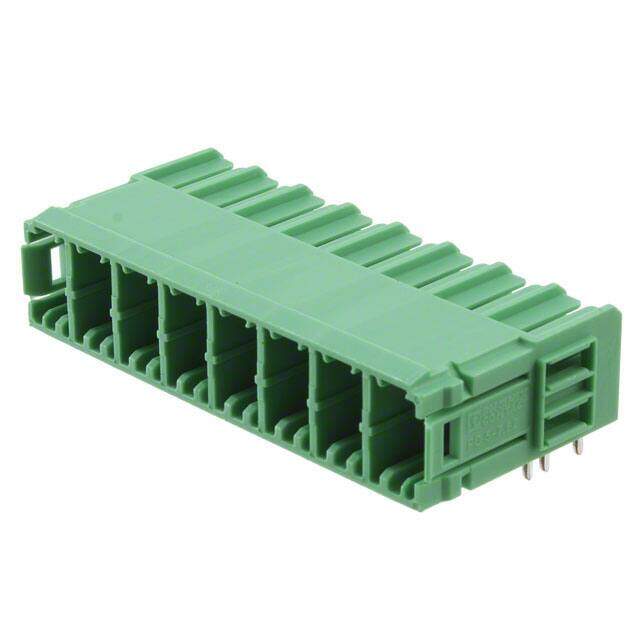

1720521
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $11.66
Unit Price: USD $11.66
≥1 USD $11.66
≥10 USD $11.3388
≥100 USD $10.59696
≥500 USD $9.749256
≥1000 USD $9.007434
≥3000 USD $8.583573
Inventory: 114
Minimum: 1
-
+
Technical Details
Technical
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Latch Lock
Series COMBICON PC
Published 2011
Packaging Bulk
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 8
Voltage - IEC 1kV
Number of Decks 1
Contact Mating Finish Tin
Current 41A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 300V
Termination Style Solder
Current Rating 41A
Insulation Height 0.563 14.30mm
Pitch 0.300 7.62mm
Additional Feature 94V-0, PA
Physical
Weight 18.799986g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
