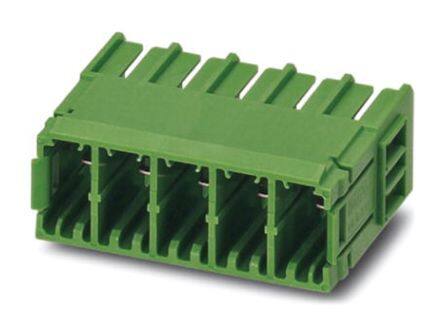

1720518 image
Favorite
1720518 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 7 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $10.64
Unit Price: USD $10.641182
≥1 USD $10.641182
≥10 USD $10.038857
≥100 USD $9.47061
≥500 USD $8.934542
≥1000 USD $8.428812
Inventory: 1711
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 7
Voltage - IEC 1kV
Number of Decks 1
Contact Mating Finish Tin
Current 41A
Number of Levels 1
ELV Compliant
Contact Tail Length 0.197 5.00mm
Voltage 300V
Housing Color Red
Termination Style Solder
Current Rating 41A
Insulation Height 0.563 14.30mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Latch Lock
Series COMBICON PC
Published 2011
Packaging Bulk

Physical

Weight 16.089999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze

Supply Chain

Factory Lead Time 4 Weeks
