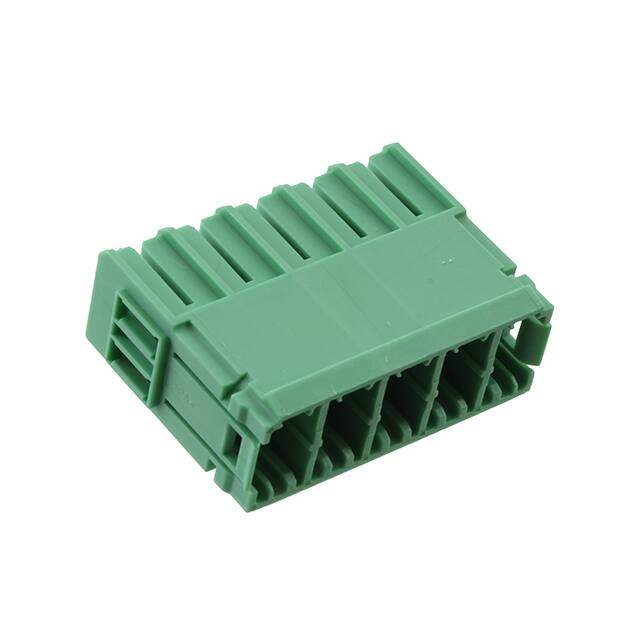

1720495
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS 90DEG 7.62MM
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.2952
≥1 USD $7.2952
≥10 USD $7.0928
≥100 USD $6.62904
≥500 USD $6.098752
≥1000 USD $5.634675
≥3000 USD $5.369549
Inventory: 442
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2009
Series COMBICON PC
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 630V
Additional Feature 94V-0, PA
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 14.29mm
Insulation Height 0.563 14.30mm
Current Rating 41A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Current 41A
Number of Poles 5
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 5
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 40.9mm
Width 29.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
