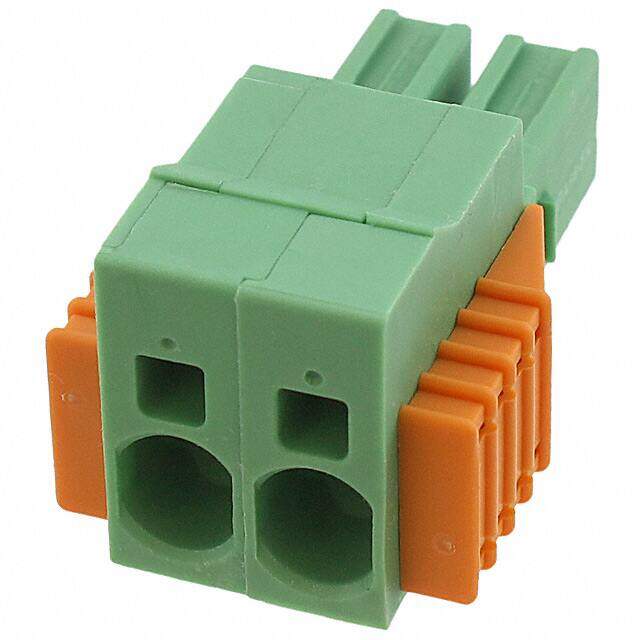

1718481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Spring Cage F 2 POS 7.62mm Screw RA Cable Mount 41A
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.79632
≥100 USD $3.54816
≥500 USD $3.26436
≥1000 USD $3.015936
≥3000 USD $2.874027
Inventory: 306
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 1.50003kg
Technical
Packaging Bulk
Published 2011
Series COMBICON SPC
Feature Latch Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.780 19.80mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage - Rated AC 1kV
Number of Contacts 2
Voltage 600V
Max Current Rating 41A
Number of Levels 1
Current 35A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 15mm
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
