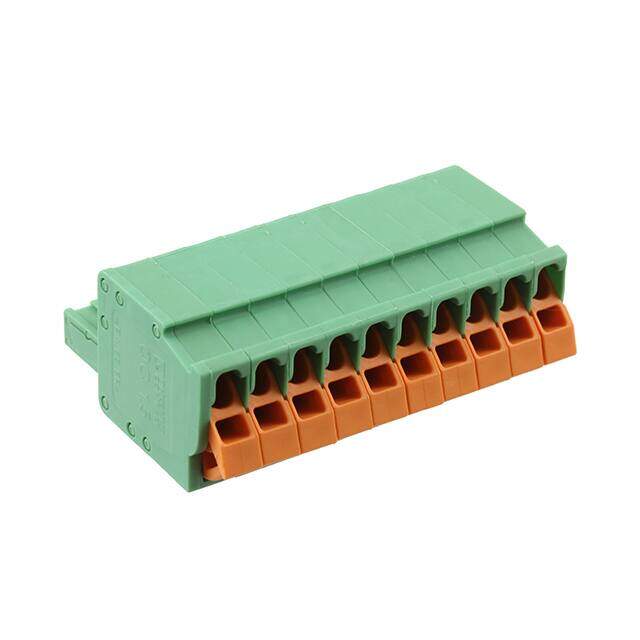

1718041 image
Favorite
1718041 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 10 Pos 5mm pitch Plug 24-16 AWG IDC
PDF
/
Buying Options
Total Price: USD $8.17
Unit Price: USD $8.1664
≥1 USD $8.1664
≥10 USD $7.94728
≥100 USD $7.4272
≥500 USD $6.833024
≥1000 USD $6.313155
≥3000 USD $6.0346
Inventory: 71
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 300.000012g

Technical

Packaging Bulk
Published 2011
Series COMBICON QC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 19.6mm
Insulation Height 0.772 19.60mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screwless - IDC
Approval Agency cULus
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 1kV
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Current - IEC 12A
Number of Positions Per Level 10

Dimensions

Length 51.4mm
Width 33.4mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
