1718009
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

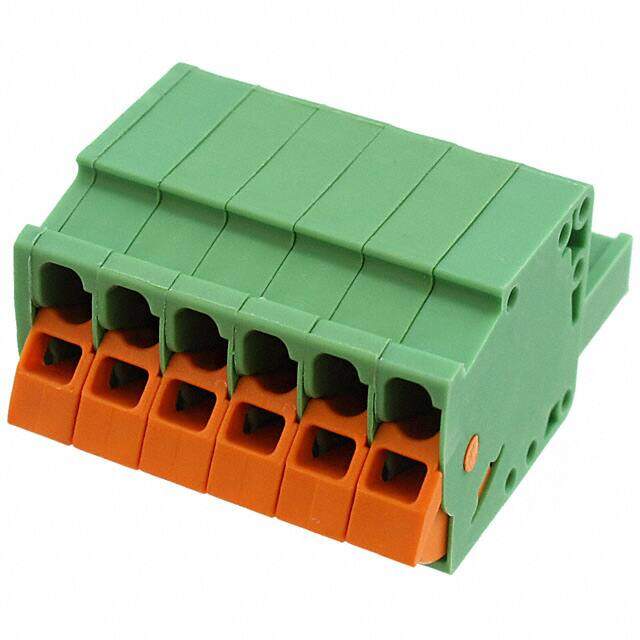

Pluggable Terminal Blocks 6 Pos 5mm pitch Plug 24-16 AWG IDC
PDF
/
Buying Options
Total Price: USD $4.38
Unit Price: USD $4.3824
≥1 USD $4.3824
≥10 USD $4.26272
≥100 USD $3.98376
≥500 USD $3.665112
≥1000 USD $3.596454
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2012
Series COMBICON QC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 500V
Additional Feature PA, 94V-0
Pitch 0.197 5.00mm
Orientation Straight
Depth 19.6mm
Insulation Height 0.772 19.60mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screwless - IDC
Approval Agency cULus
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 1kV
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Current - IEC 12A
Number of Positions Per Level 6
Dimensions
Length 31.4mm
Width 33.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
