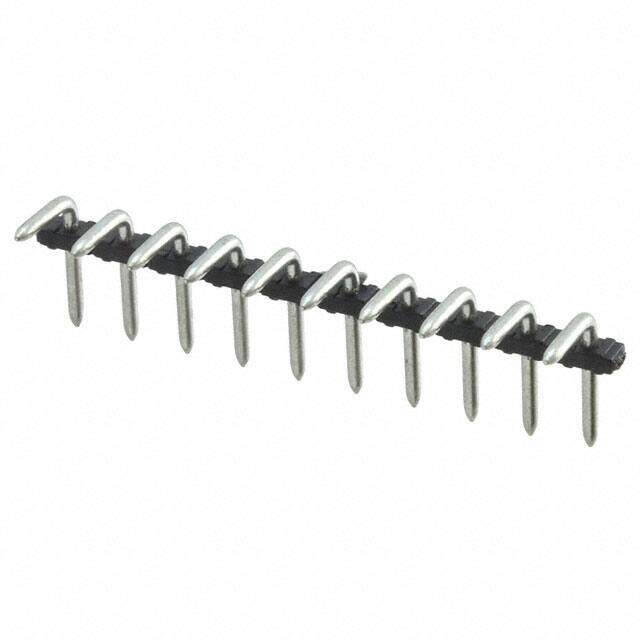

1717330
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Headers & Wire Housings 10 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.2672
≥1 USD $1.2672
≥10 USD $1.21088
≥100 USD $1.177968
≥500 USD $1.10088
≥1000 USD $1.01281
≥3000 USD $0.993854
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PST
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Number of Positions 10
Color Black
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.110 2.79mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.266 6.75mm
Number of Levels 1
Current 16A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
