1717119
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

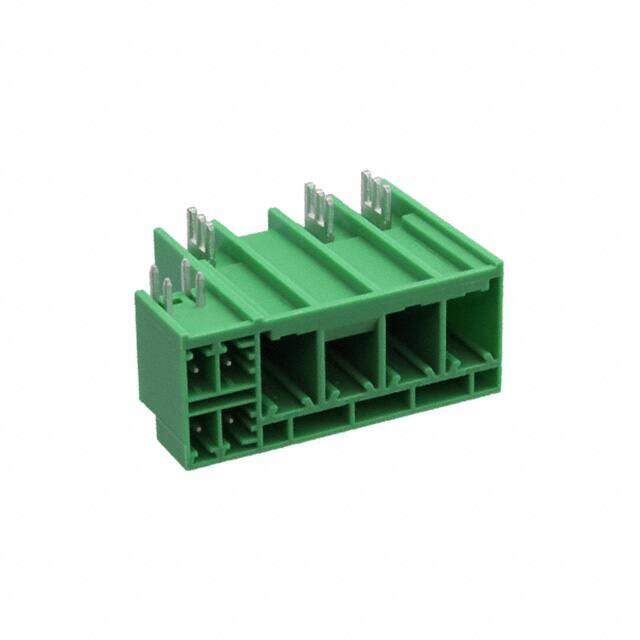

TERM BLOCK HEADER HYBRID 3+4POS
PDF
/
Inventory: 5776
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Through Hole
Technical
Packaging Bulk
Series Power Combicon PCH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Header, Male Blades and Pins, Shrouded (4 Side)
Number of Positions 7
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.646 16.40mm
Termination Style Solder
Number of Levels Hybrid
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 35A
Voltage - IEC 630V
Positions Per Level 7 (3 Power + 4 Signal)
Header Orientation 90°, Right Angle
Current - IEC 41A
Compliance
RoHS Status RoHS Compliant
