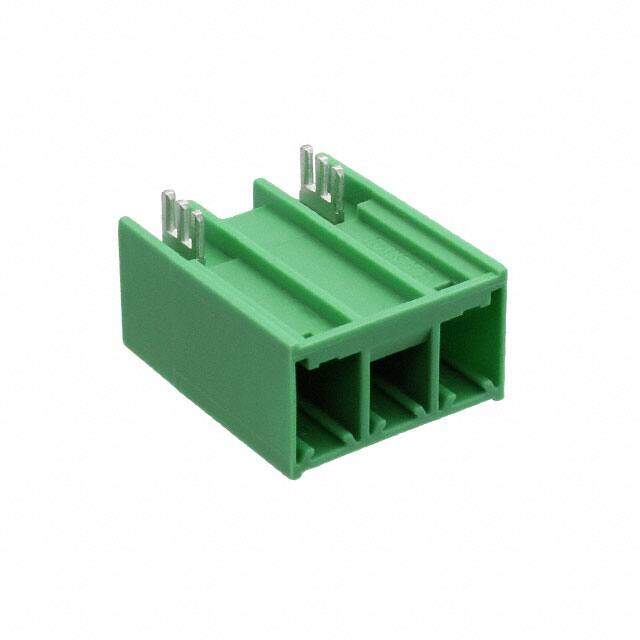

1717025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HEADER 7.62MM 2POS
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5256
≥1 USD $2.5256
≥10 USD $2.45784
≥100 USD $2.2968
≥500 USD $2.113056
≥1000 USD $1.952298
≥3000 USD $1.860408
Inventory: 162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Through Hole
Technical
Packaging Bulk
Series Power Combicon PC
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Header, Blade Pins, Shrouded (4 Side)
Number of Positions 2
Color Black
Pitch 0.300 7.62mm
Insulation Height 0.531 13.50mm
Termination Style Solder
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 35A
Voltage - IEC 630V
Header Orientation 90°, Right Angle
Current - IEC 41A
Compliance
RoHS Status RoHS Compliant
